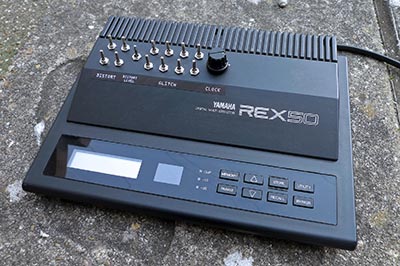

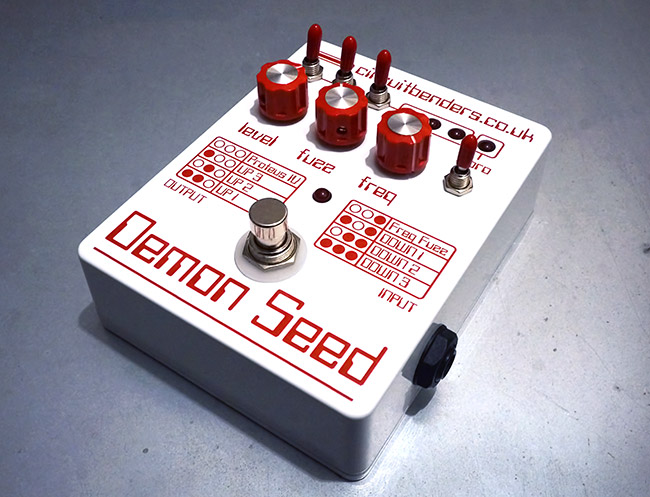

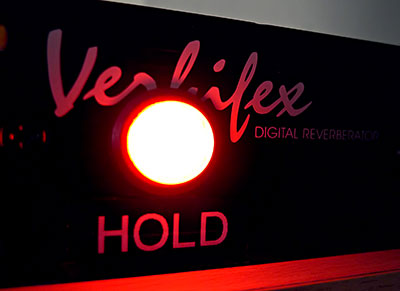

14/08/17 - We have a new demo of a circuit bent Phonic Verbifex multi FX unit up on our Soundcloud. Mods include a reclocking knob and a RAM loop button.

Phonic Verbifex

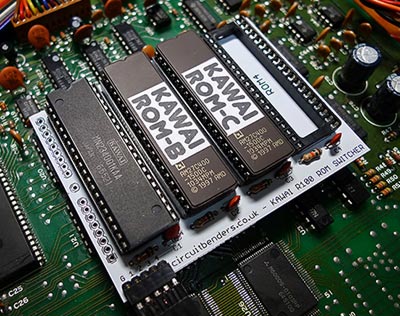

23/01/17 - The Kawai R-ROM sound ROM switcher mod is available as a solderless DIY kit on the SHOP page of the site.

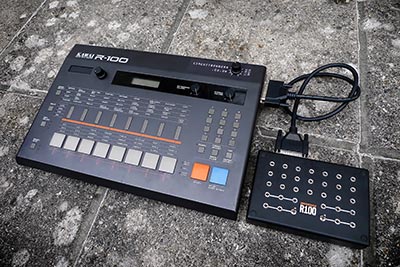

20/01/17 - The KAWAI R100 mods page has been updated with the new external patchbay and ROM switcher mods.

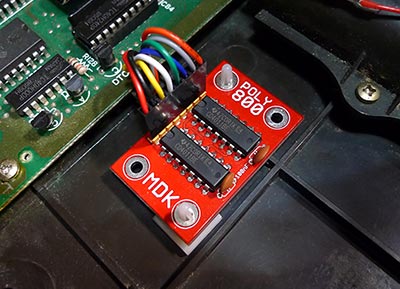

29/11/16 - Poly800 mkI MDK Midi Dump Kit's are now available. This DIY kit adds midi sysex patch exchange with your computer to the mkI Poly800. Click HERE or on the image for details.

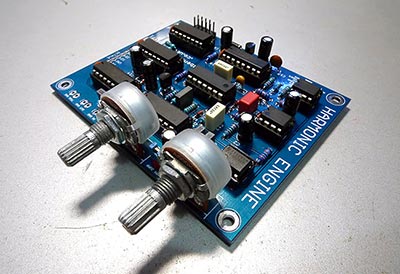

16/09/16 - Harmonic Engine DIY PCB's are now available. The Harmonic Engine is a clone of the 1981 E&MM Harmony Generator. Click HERE or on the image for more details.

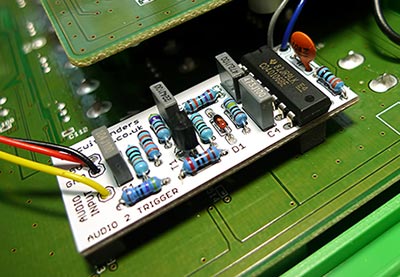

29/07/16 - DIY Audio 2 Trigger interface kits are available in the shop. Theres also some pre-built modules for direct installation into a Roland TR8.
The interface takes an audio signal such as a click or rimshot sound, and converts it into a +5v 10ms analogue trigger pulse.

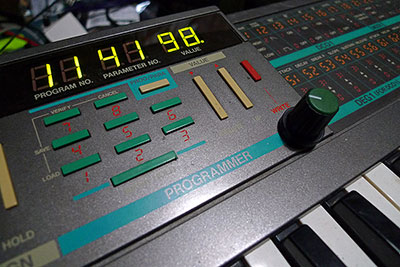

04/07/16 - We have a new DIY kit that adds a data entry knob to replace the up & down parameter change buttons on a Korg Poly800 mkI or mkII synth. Click HERE or on the image below to take a look

08/05/16 - Ten Thumbed Tone Deaf No Talent Noise Pollution T-shirts are available in various colours on the Mercht website until 22nd May. Ships on 25th May. Click HERE or on the image below to take a look.

circuitbenders t-shirt

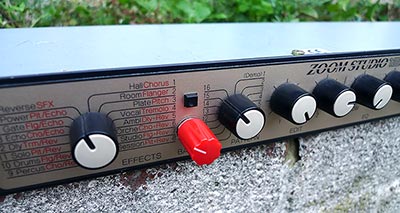

15/02/16 - The Zoom 1204 reclocking mod is now available for your unit. Click HERE or on the image below to take a look.

Modified Zoom 1204

28.01/16 - We have a new 'Car Boot Sale' page on the site. This is designed for selling all the weird random bits & pieces of audio electronics that seem to accumulate in every drawer and cupboard. Click HERE or on the image below to take a look.

29/11/15 - Due to popular demand the Boss DR110 din-sync interface kits are back in stock. Click HERE or on the image below to take a look.

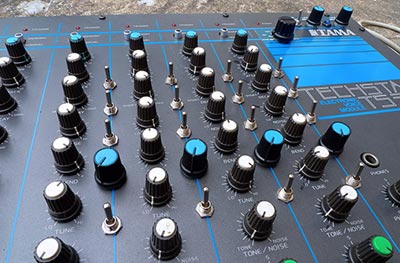

28/08/15 - We have a new write up detailing our expanded TAMA TECHSTAR TS305 mods. Included are a couple of demo videos and full descriptions of the mods. Click HERE or on the image below to take a look.

14/07/15 - The ZOOM 1202 mods are now available for your unit. The mod includes a 9 way RAM decimation switching matrix, a reclocking knob and a power switch. Click HERE or on the image below for more details.

27/03/15 - Our CB55 - Boss DR55 voice clone boards are back in stock. Click HERE or on the image below for details.

circuitbenders CB55 - Boss DR55 clone PCB

17/02/15 - The ZOOM 1201 mods are now available for your unit. The mod includes a 14 way RAM decimation switching matrix, a reclocking knob and a power switch. Click HERE or on the image below for more details.

02/02/15 - The new LTC1799 module mkII PCB's have arrived! This is a simple solution for reclocking and changing the pitch of any number of drum machines, effects units, synths, samplers and toys. Just add an external frequency pot and some power.

22/01/15 - We have a new write up and demos for a modded ZOOM 1201 effects processor. Click HERE or on the image below to take a look.

22/12/14 - On addition to our write up on our reclocked ART multiverb LT a couple of weeks back, we also now have an ART Proverb 200 effects unit on the same page. Click HERE or on the image for more details.

Modified ART proverb 200

10/12/14 - We have a new write up and demos for a reclocked ART Multiverb LT effects processor. Click HERE or on the image below to take a look.

30/11/14 - We have a new write up and demos for our reclocked Fostex DE1 effects processor on the site. To take a look click HERE.

25/11/14 - We have an update on the sound machine page in the archive. Behold, the sound machine F*** Box! Click HERE to take a look.

28/07/14 - We have a new DIY clone PCB of the voice circuits from a Boss DR55 drum machine available to buy. The board features all four analogue sounds and an overall accent, all driven by standard 5v trigger pulses or gates. Click HERE to take a look

circuitbenders CB55 - Boss DR55 clone PCB

02/07/14 - We have a new page on the site dedicated to ancient analogue drum machine retrofits. If you want external triggering, midi, individual outs or to be able to actually hear the sounds over the 70's inductors humming away in the background, then click HERE and we'll see what we can do.

16/04/14 - The Korg Poly800 mkI data entry knob mod is now available for your synth. This mod replaces the UP/DOWN data entry buttons with an endless rotary encoder. Click HERE to take a look.

22/03/14 - We have a new page with details of converting a Roland TR77 to use a regulated external power supply instead of the useless power circuit it has as standard. Click HERE to take a look.

TR77 power conversion

24/02/14 - The Korg Poly800 mkII data entry knob mod is now available for your synth. This mod replaces the UP/DOWN data entry buttons with an endless rotary encoder. Click HERE to take a look.

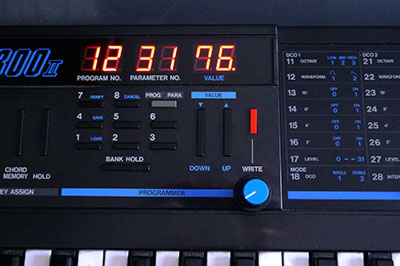

Poly 800 data entry knob

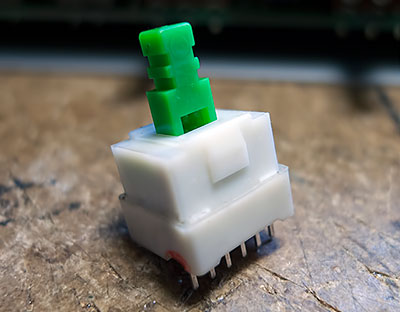

20/02/14 - Replacement tactile switches for units such as the TB303, TR606 and KPR77 are now available in sets at a reduced price, Click HERE to take a look.

16/01/14 - Our Korg Kaoss Pad KP1 mods are now available to be installed on your unit! Click HERE to take a look

14/01/14 - We have replacement LCD screens for the Alesis HR16 available on the site. Click HERE to take a look.

HR16 replacement LCD screen

30/12/13 - We have a new page up with photos and details of out Steampunk Christmas lamp. Click HERE to take a look.

Steampunk lamp small

24/12/13 - Merry Christmas from circuitbenders.co.uk!

11/11/13 - 03/07/13- We have a new write up with details of our circuit bent Korg Kaoss Pad KP1 that can be found HERE. The page includes photos and demos.

Modified Korg KP1

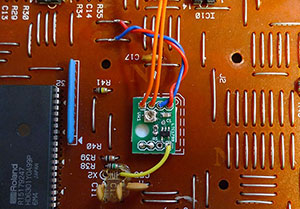

18/10/13 - We have a new simple tutorial detailing how to create a pitch control by installing one of our LTC1799 clock oscillator modules into a Roland TR505 drum machine. To take a look click HERE.

11/10/13 - We're now offering a replacement tactile switch / buttons service for the Jomox Xbase09 drum machine. Click HERE for more information.

13/09/13 - We now have LTC clock oscillator modules available in both DIP6 and PCB formats. The PCB includes an onboard trimmer to set the highest clock frequency. For more information, click HERE.

27/08/13 - Our Yamaha RX17 drum machine mods now include an alternative option of a 24 way percussion grinding switch matrix. Click HERE to take a look.

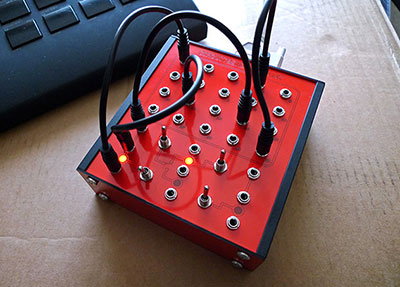

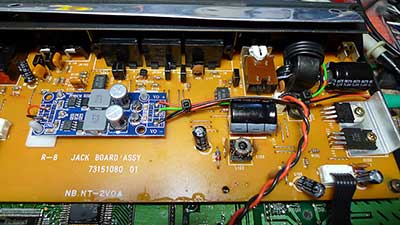

03/07/13- We have a short writeup on our circuit bent Roland R8 that can be found HERE. The page includes photos and demos.

10/04/13 - We have a short writeup on our circuit bent Yamaha RX5 that can be found HERE. The page includes photos and demos.

07/02/12 - Upgrade EPROM's for the Digitech Studio Quad FX processor are now available on the SHOP page.

05/12/12 - A quick write up on our modified Roland R5 drum machine has been added to the new machines archive. Click HERE to take a look.

19/11/12 - A write up on a modified Yamaha DX100 FM synth has been added to the site. Click HERE to take a look.

28/10/12 - All of our Akai sampler operating system upgrade EPROM's are now available in the shop. Click HERE to take a look.

28/08/12 - We've finally got around to rebuilding the Gallery page with a whole load of photos, some old and some new. Click HERE to take a look.

01/08/12 - We have some free Speak & Spell gibberish up on our Soundcloud page. Click the image below to go there.

25/07/12 - The Kawai R100 mods now include an optional pitch control and new demos to listen too. Click on the image to go to the R100 page.

Kawai R100 pitch

09/05/12 - Boss DR110 DIN-sync kits are now available in the shop. Click on the image for more details.

DR110 DIN sync kit

05/05/12 - Details of how to install a backup battery have been added to the Boss DR110 archive page. Click on the image to go there.

DR110 backup

05/04/12 - We now have EPROM operating system chips for the Akai S3000XL, S3200XL and S1000 available in our ebay shop. Click on the image to go there.

Akai os

26/01/12 - Our Kawai R50 drum machine mods now include an optional pitch control. For more infomation and a demo click HERE.

Kawai R50 pitch knob

02/01/12 - Akai S01 SALE! - For a limited time or until stocks are exhausted, if you pay for the cost of one of our Akai S01 sample grinding mods, you get the sampler itself thrown in for free! SALE ENDED.

Akao S01 SALE!

19/08/11 - The standard Casio RZ1 drum machine mods now include an optional dual pitch control and backlight inverter on/off mod. For more information and an audio demo of the pitch mod click HERE.

Casio RZ1 pitch mod

15/08/11 - The TR505 mods now include an optional pitch control. You can find more details and an audio demo HERE.

TR505 pitch mod

11/08/11 - A very limited number of Korg Poly800 mkI 'Polybeast' mod kits are available in the shop.

For more details take a look HERE.

POly 800 mod kit

08/08/11 - We have a small update to the Dan Echo DE1 page with a rehoused desktop version.

To take a look click HERE.

09/06/11 - Update to the Boss DR110 mod page, with details of an internal DIN-sync mod we have managed squeeze inside.

For more info click HERE.

DR110 internal dinsync

20/04/11 - Bend Bus sample grinding mods are now available for the Akai S2000. Mod includes an 18 way switching matrix, internal SCSI and replacement IEC mains socket.

For more info click HERE.

Akai S2000

30/03/11 - Dual pitch controls are now available as an optional extra on our Alesis HR16 mods. Mod includes a 'percussive range' pitch knob and a subsonic 'wall of noise' knob.

For more info click HERE.

HR16 pitch controls

24/02/11 - Pitch controls are now available for our VSS30 mods. Mod includes a pitch knob and a switch to select between normal pitch and mod control.

For more info click HERE.

VSS30 pitch

31/01/11 - We have a limited number of replacement Roland SH101 bender levers available. Includes the plastic lever, rotary spring and grub screw.

For more info click HERE.

SH101 bender lever

20/01/11 - Heres a quick demo of the Akai S2000 we're working on. All distortions, chops and fills are created using the mods with no external editing.

Bent Akai S2000 break1 by circuitbenders.co.uk

07/01/11 - LTC1799 oscillator IC's pre-soldered to a standard DIP6 adapter are now available in our shop. These tiny chips are suitable for adding pitch controls to any number of synths, samplers, drum machines and toys.

For more info click HERE.

Take a look at our quick and simple guide to building an LTC1799 oscillator circuit on stripboard HERE.

LTC1799

25/11/10 - We now have an RSS feed so you can keep updated on all things circuitbenders.co.uk. Click on the RSS logo to sign up.

25/10/10 - The Akai S01 patchbay mods now come with a choice of either a rackmounted or a desktop patchbay. Click HERE for more details.

S01 rack

28/06/10 - The Akai S20 mods are now available for your machine. Click HERE for more information.

06/05/10 - Circuit bent Akai S20 up for sale on ebay. Click HERE to go to the auction.

25/02/10 - circuitbenders.co.uk stickers are now available in the shop. Click on the image for more details.

23/02/10 - The third and final installment of the circuitbenders sample packs has just been released on Loopmasters. Click on the image for more details:

13/10/09 - Our second sample pack of circuit bent sounds has just been released on Loopmasters. It includes over 770 loops and sounds.

- Loopmasters have just released a sample pack of circuitbent sounds created by us. The pack features over 700mb of content including over 750 samples.

- A 'filter lock' mod is now available for the FAT Freebass / MB33. This mod locks the filter and VCA envelopes open at a constant level so you no longer need to trigger the filter with a midi note when processing external audio signals. Click HERE for more information

- We now have a circuitbenders.co.uk facebook page. Click on the logo below to go there

- Sample grinder mods are now available for the Akai S01 rackmount sampler. Take a look HERE for more details.

- Extra mods for the Korg Poly800 mkII are now available, including delay control knobs and input path selection. Click HERE to take a look

- We now have patchbay mods available for the Kawai R100 HERE and the Yamaha RX7 HERE.

- The Roland TR505 mods now include the option of analogue trigger outputs for each sound. Outputs can be mixed and matched with individual audio outputs in any combination. Click HERE for more details

- Roland TR626 patchbay mods now include 2 x patchable switches. Click HERE for more details

- The Korg Poly 800 / EX800 mods have been expanded to include an Audio input, Filter FM controls and external VCF CV control. Click HERE to take a look.

- The external VCF CV mod for the Freebass / MB33 now has the option of 0-5V or 0-10V, take your pick. Click HERE for more information

- Finally the Roland SH101 mods have arrived! To take a look click HERE.

- An external VCF CV input mod is now available for the FAT Freebass / MB33 mods. Click HERE for more information

- Mods for the AKAI XR-10 drum machine are now available. Click HERE to go there.

- Mods for the Cheetah MD-16 drum machine are now available. Click HERE to go there.

- Mods for the FAT Freebass / MAM MB33 rack synths are now up on the Synth Mods page. Click HERE to go there.

- Mods for the Korg DDD-1 drum machine are now available. Click HERE to go there.

- Mods for the Casio RZ-1 sampling drum machine are now available. Click HERE to go there.



LATEST BENDS & MODS

This section is updated on a regular basis with details of our latest circuit bent and modified machines. Take a look in the archive for older featured machines.

Y

BEHRINGER VIRTUALIZER & MODULIZER
= THE BEHRINGULIZER 2000

DIY kits for installing this mod are available HERE.

The Behringer Virtualizer DSP1000 was first released around 1997, closely followed by the Virualizer DSP1000P and Modulizer DSP1200P a year later. The P appears to stand for 'Pro'.
The only difference we can discern between the Virtualizer DSP1000 and the DSP1000P is that the Pro version has XLR inputs and outputs alongside the normal jack sockets, and the non pro version doesn't. There may have been a non pro version Modulizer, but we can't find any trace of one. The Modulizer appears to be a much rarer beast, as demonstrated by the fact that at any given time you can probably find a couple of dozen Virtualizers of various different types on ebay, but you'll rarely even see one Modulizer.

modified behringer modulizer virtualizer

A couple of years after the Pro versions were released, Behringer updated both units to the DSP1024P and the DSP1224P. The only improvement seems to have been a upgrade of the D/A and A/D converters from 20 to 24 bit, as if anyone could possibly tell the difference on a late 90's Behringer machine!

The Virtualizer has two effect engines with either stereo or dual mono effects including all the standard reverbs, delays, chorus, pitch shift etc that you would expect on a cheap multi FX, but it also has a few more unusual effects like vocal distortion and what someone at a Behringer lab somewhere might imagine was a vocoder. This sounds like the work of someone who'd had a vocoder described to them, but had never actually heard one!
The Modulizer has an altogether more interesting but baffling array of effects including various phasers and flangers, auto lowpass/bandpass/hipass filters, ring modulator, vintager (what?), resonator, guitar amp simulators, and the curious 'ultra ambience' and '3D space maker'. You get the impression that Behringer ran out of ROM space in the Virtualizer and thought they might as well put out another unit with all the stranger stuff in it! This might go some way to explain why the Modulizer plainly didn't sell so well and it correspondingly rarer second hand.

When you open up a DSP1000, DSP1000P or DSP1200P you'll find......... nothing!
Seriously, theres nothing in there. Theres absolutely no reason for the case to be that deep as at least 75% of it is empty space. You have the control boards at the front, then about 5 inches of nothing, and the sockets board at the back. The actual effects processor is a small cluster of IC's and an operating system EPROM at the back of the board.

behringer internal

The DSP1000P and the DSP1200P are identical inside apart from a different operating system EPROM. As they are the same machine, this gives us the opportunity to copy the OS from both the Virtualizer and the Modulizer, and then write them both to another EPROM with twice the memory. With the addition of a small adapter PCB and a switch we can then mount both operating systems in the one unit and make it switchable between operating as a Virtualizer or a Modulizer. BEHOLD, the birth of the Behringulizer 2000!

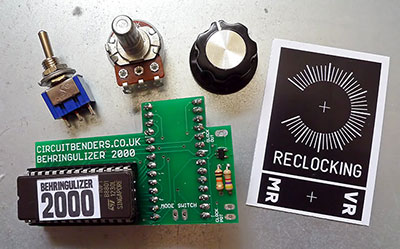

behringulizer 2000 PCB

You have to make the switch between versions with the unit turned off to reboot the OS, or else it tends to crash wildly!

We would have thought that both the Virtualizer and Modulizer operating systems would use the same memory areas to store saved user presets, and so any saved effects would be scrambled when you make the switch due to the effect parameters of programs saved in certain positions being different, but mysteriously this is not the case. Possibly this is a legacy from when Behringer were designing the operating systems and it was easier to use different memory blocks to save effects for each OS, so you could use the same hardware to test both systems. Whatever the reason, it means that you can now use one unit as both machines with completely editable and savable preset effects.
The new switchable operating system PCB can also be installed in the non pro DSP1000, as the only real difference is the lack of XLR sockets. The rest of the hardware is the same as the later versions, albeit arranged slightly differently on the main board.

christ on a bike

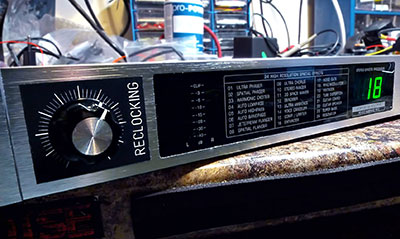

The other mod is a reclocking knob as found on many other machines we have modded. Essentially this removes the onboard system clock and replaces it with a variable clock controlled by a knob on the front panel. This means the processing of effects can be slowed down or sped (or is it speeded?) up at will. It will extend the reverb and delay times to a grungy degree way outside of what would normally be possible. Reverbs can be altered from short metallic ambiances to massive washes of glacial disconnected sound just by turning the knob, while the speed of the delays can be continuously controlled and wildly pitched up and down at will.
Some of the best reclocking effects can be created using the stranger presets such as the ring modulator, vocal distortion, and vocoder. Literally playing the reclocking knob while these effects are active takes them well out of their safety zone into something more organic and deeply unpleasant.
As the reclocking knob also controls the clock rate of the converters, it also changes the sample rate of the incoming audio. At higher than normal clock settings the audio quality is actually better than the stock machine!



Theres something strangely satisfying about the way all the LED's start strobing as their update flash rate which is normally far faster than the human eye can see, is pulled down into visual frequencies by the reclocking.

All the components for the reclocking mod are found on the new OS switching PCB, so installing the mod is a simple job of removing the original timing crystal and replacing it with the clock output from the new board. Connect up a pot and enter a new world of nauseating digital noise!

DIY kits for installing this mod are available HERE.

Check out some demos below, including a somewhat disturbing one of the Behringuliuzer 2000 processing a 1980's Irish Catholic guide to sex.
